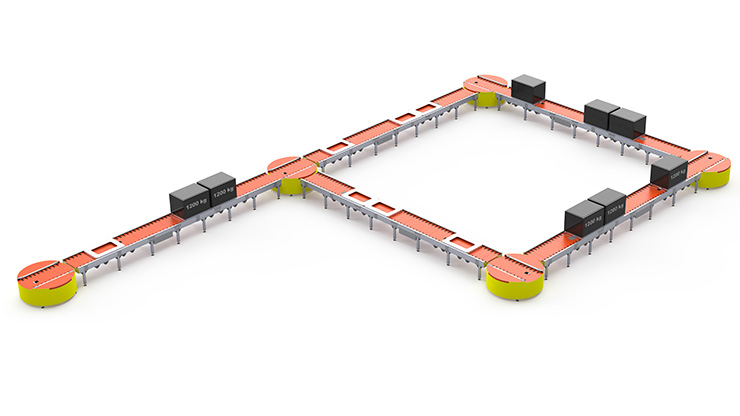

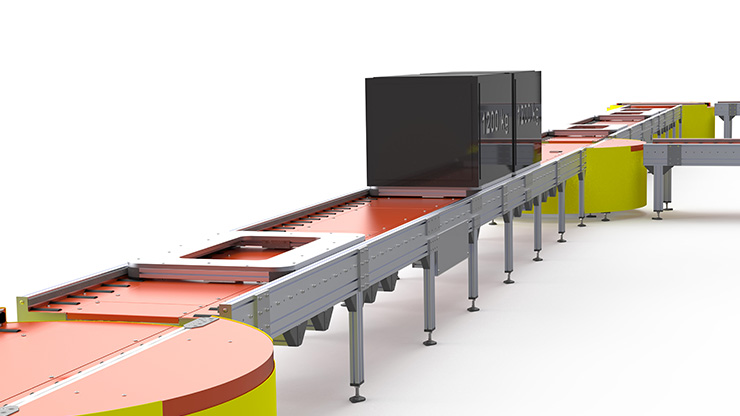

RMS Max is a further development of the RMS roller assembly system and can transport workpieces three times as heavy as the latter, namely up to a weight of 1000 kg per linear meter. The workpiece carriers are guided through the side profile; the guide width can be customized thanks to the split conveyor rollers.
Do you have any questions about the RMS Max or would you like personal advice? Then please contact us!
The solution, also known as a workpiece carrier transfer system, is based on heavy-duty accumulation rollers that allow free circulation for assembly, testing and processing tasks. The workpiece carriers can be accumulated and buffered, and manual workstations can also be easily integrated into the conveyor line.
The system ensures a smooth material flow and can be flexibly adapted to the respective requirements thanks to its modular design. It is ideal for use in production lines, assembly technology and factory automation where particularly heavy workpieces are involved. Examples include motors or battery modules - and anything else that fits on the footprint of a Euro pallet.
Workpiece carrier
Rollers
Drive units
Lifting and positioning unit
Separating stop
Below you will find a comparison between the RMS and RMS Max systems. Our customer advisors will be happy to answer any further questions you may have!
| RMS | RMS Max | |
| FIELDS OF APPLICATION | Heavy and large components e.g. engines, gearboxes, axles, silencers, heat pumps etc. | Particularly heavy and large components e.g. truck engines, gearboxes, rear axles, battery packs etc. |
| LOADS | up to 350 kg/WT | up to 1.000 kg/m |
| GUIDING WIDTHS | Standard 400, 500, 600 mm | ≥ 600mm, freely selectable with split rollers |
| LENGTH OF WORKPIECE CARRIERS | 400 mm to 2000 mm | 600 mm to 2.500 mm |
| STANDARD ROLLER DIVISION | 60, 120, 180 mm | 75, 150mm |
| ROLLER DIAMETER | 50 mm | 60 mm |
| LENGTH PER DRIVE | up to 9 m | up to 9 m |
| LOAD PER DRIVE | up to 1.200 kg | up to 6.000 kg |
| SPEEDS | up to 15 m/min | up to 9 m/min |
| ACCUMULATION OPERATION | Accumulation rollers with internal friction | Accumulation rollers with internal friction |
| DRIVE | E-motor, tangential chain/accumulation roller | E-motor, tangential chain/accumulation roller |
