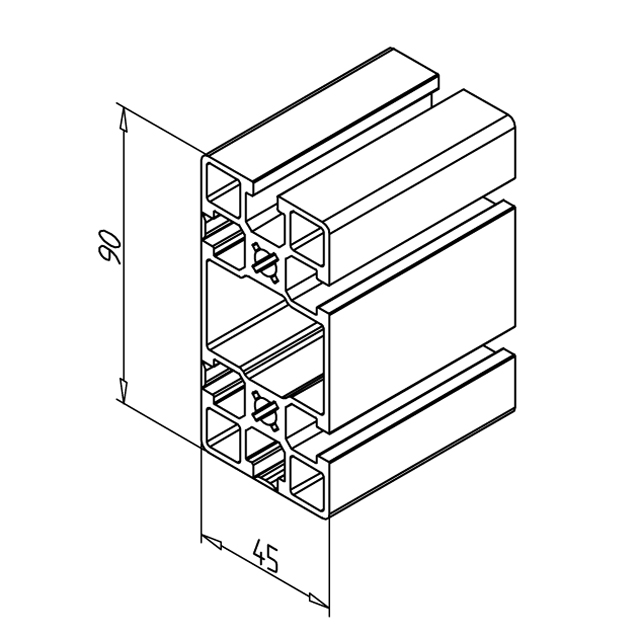

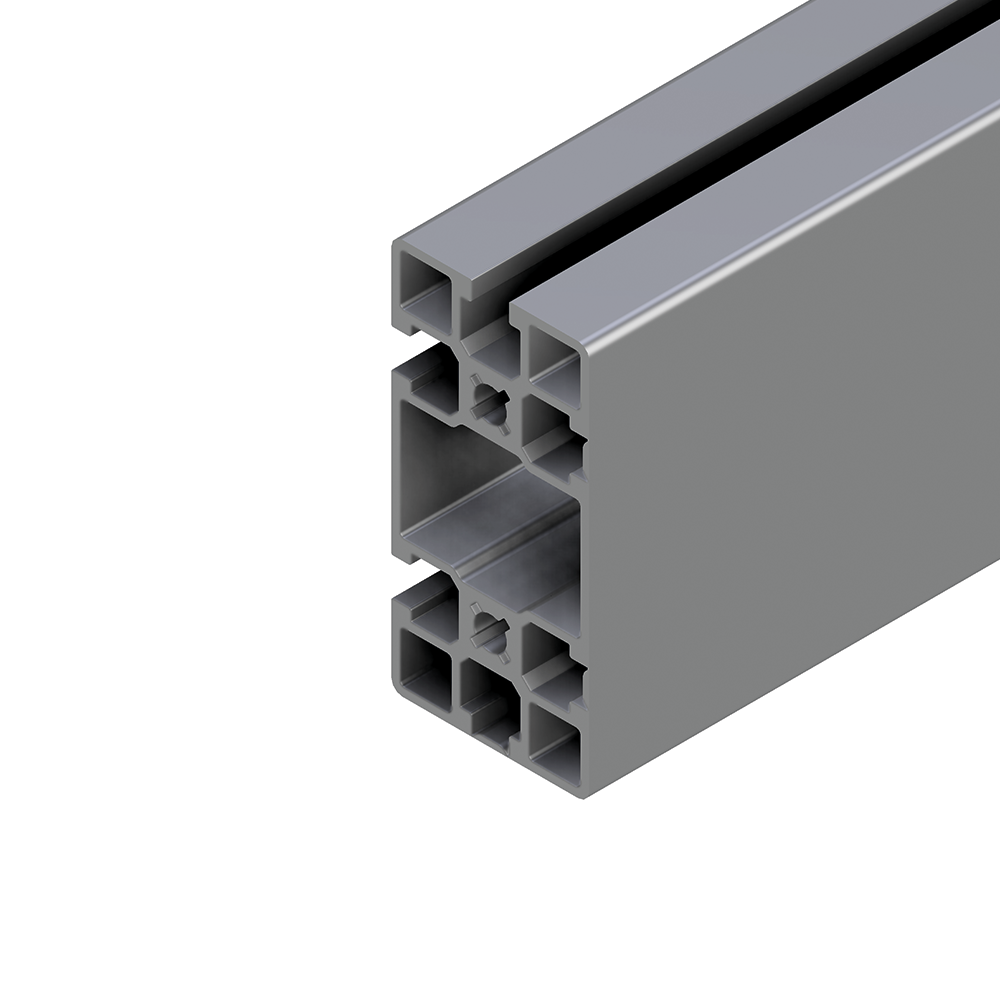

Profile 45 x 90 2G
Article Nr. 20.1081/0
Shop availability
Production length 6m (price advantage for packing unit)
6m (piece)
24m (packing unit)
4x6m
24m (packing unit)
cut in half
8x3m
Configure cutting (up to 6m)
Length L (10 - 6000)
mm
m
Quantity
Comment
Add to orders
Add to inquiries
Prices and ordering options only for registered and logged in corporate customers.
Explanation about the shop
As a registered
corporate customer
, you will see your current price for this product after
logging in
and can order it directly.
Questions about the product / Contact
Calculate deflection
CAD Download
Generate datasheet
3D View
Techn. Data / Items supplied

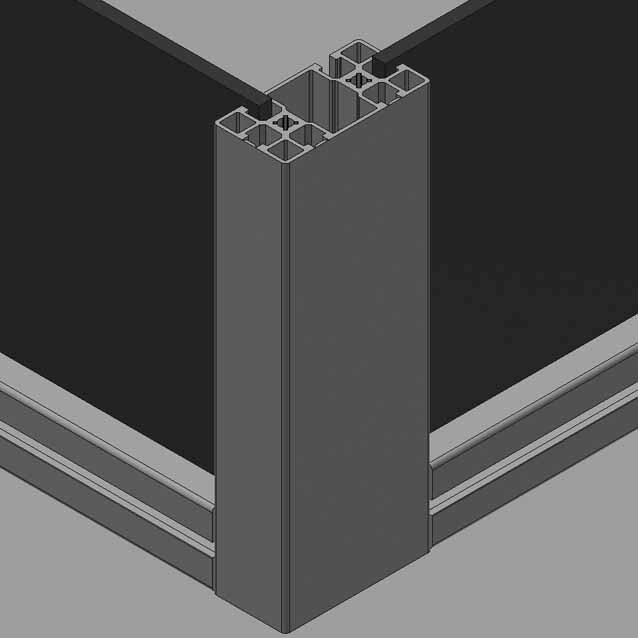

Applications
Assembly
Aluminium, extruded, anodized E6/EV1
I
x
= 98.137 cm
4
I
y
= 24.317 cm
4
w
x
= 21.808 cm
3
w
y
= 10.807 cm
3
IT = 122.453 cm
4
Weight = 3.108 kg/m
Bar length = 6 m
Packing unit = 24 m
Fits With
VERBIND
Power-lock fastener 45 SF
21.0818/0
VERBIND
Power-lock fastener 45 - stainless
21.1018/1
VERBIND
Mounting angle 45 X 90 GD-Z
21.1397/0
