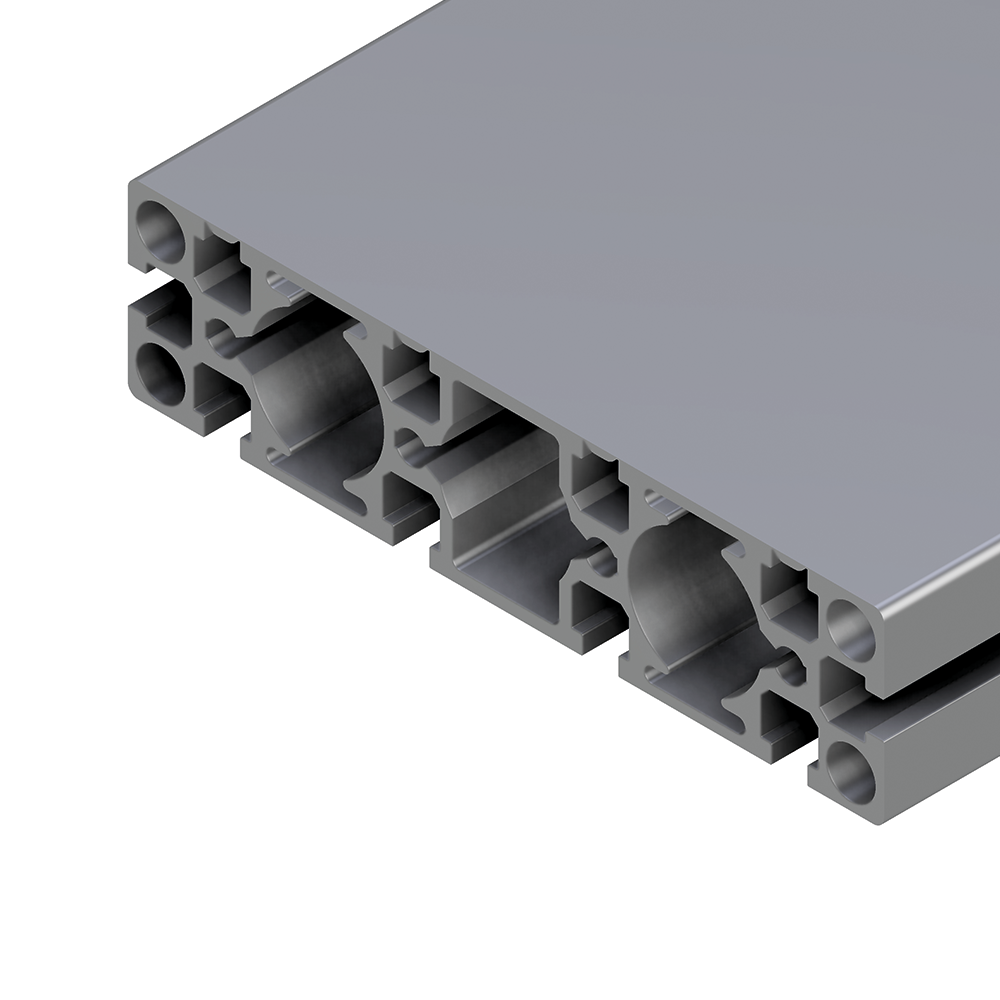

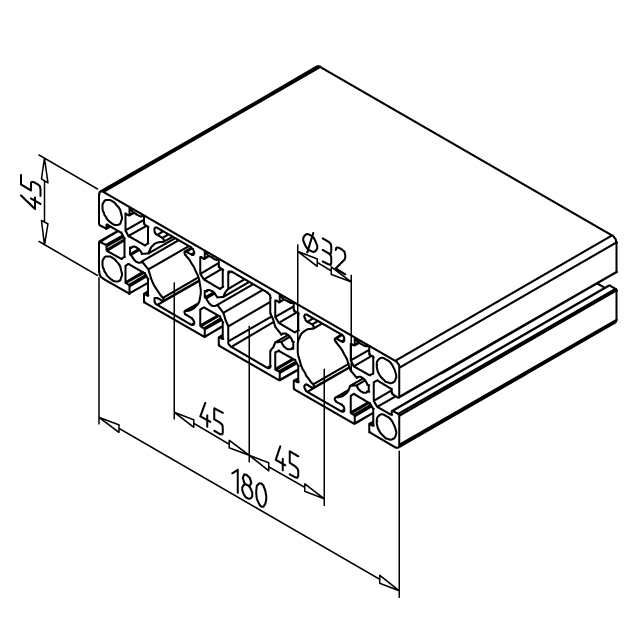

Profile 45 x 180 1G
Article Nr. 20.1079/0
Shop availability
Production length 6m (price advantage for packing unit)
6m (piece)
12m (packing unit)
2x6m
12m (packing unit)
cut in half
4x3m
Configure cutting (up to 6m)
Length L (10 - 6000)
mm
m
Quantity
Comment
Add to orders
Add to inquiries
Prices and ordering options only for registered and logged in corporate customers.
Explanation about the shop
As a registered
corporate customer
, you will see your current price for this product after
logging in
and can order it directly.
Questions about the product / Contact
Calculate deflection
CAD Download
Generate datasheet
3D View
Techn. Data / Items supplied

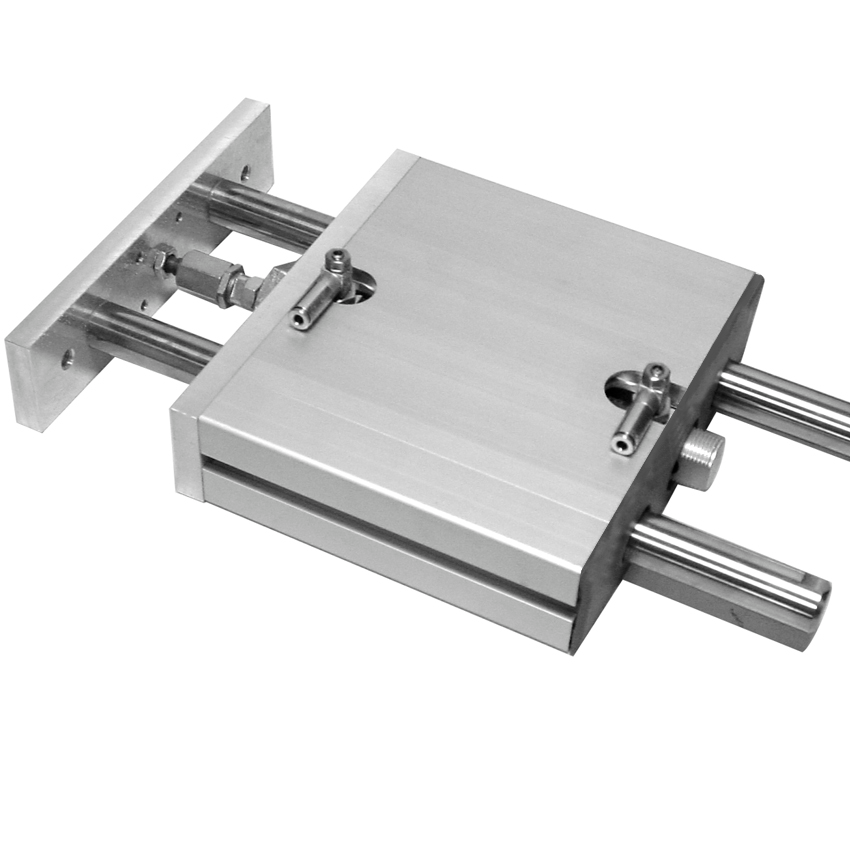

Applications
Assembly
Aluminium, extruded, anodized E6/EV1
I
x
= 61.015 cm
4
I
y
= 810.885 cm
4
w
x
= 26.704 cm
3
w
y
= 90.097 cm
3
IT = 271.248 cm
4
Weight = 6.950 kg/m
Bar length = 6 m
Packing unit = 12 m
Fits With
VERBIND
Power-lock fastener 45 SF
21.0818/0
VERBIND
Power-lock fastener 45 - stainless
21.1018/1
VERBIND

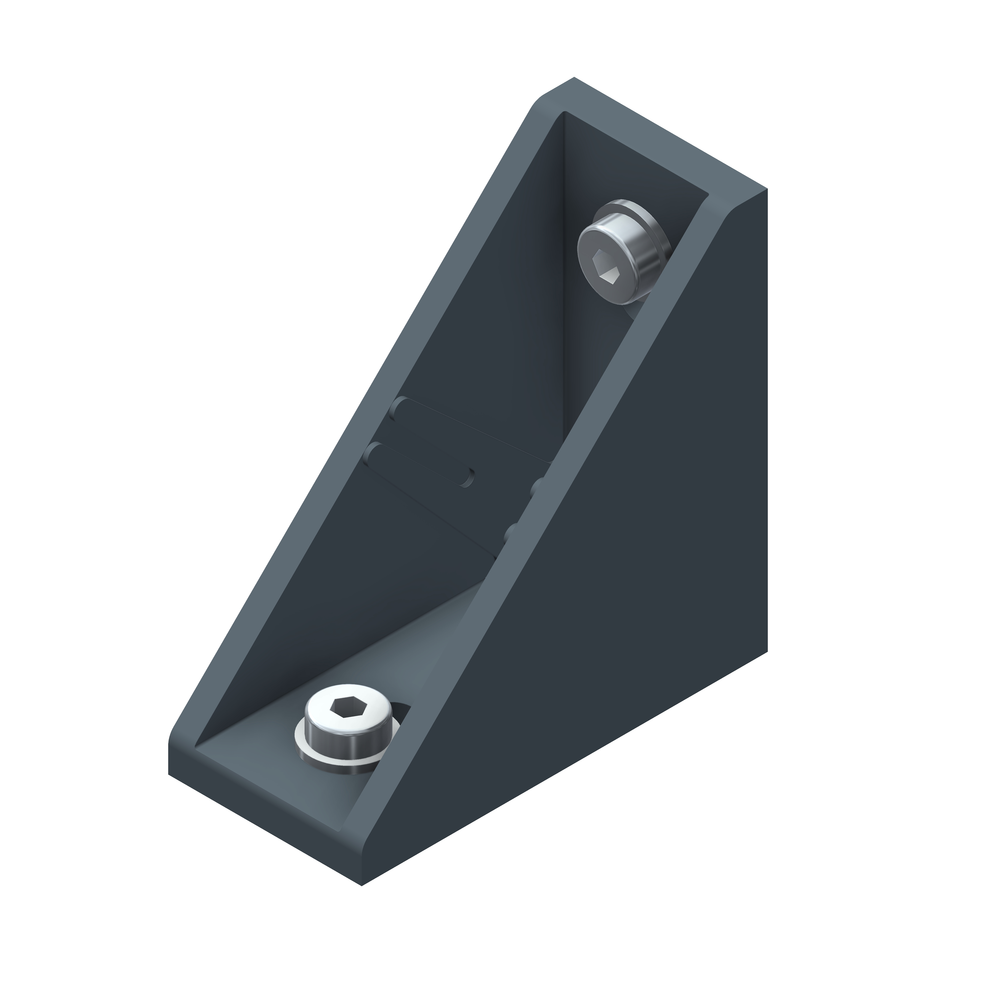

Mounting angle 45 X 90 GD-Z
21.1397/0
