Profile 30 x 30
Article Nr. 20.1068/0
Shop availability
Production length 6m (price advantage for packing unit)
6m (piece)
54m (packing unit)
9x6m
54m (packing unit)
cut in half
18x3m
Configure cutting (up to 6m)
Length L (10 - 6000)
mm
m
Quantity
Comment
Add to orders
Add to inquiries
Prices and ordering options only for registered and logged in corporate customers.
Explanation about the shop
As a registered
corporate customer
, you will see your current price for this product after
logging in
and can order it directly.
Questions about the product / Contact
Calculate deflection
CAD Download
Generate datasheet
3D View
Techn. Data / Items supplied

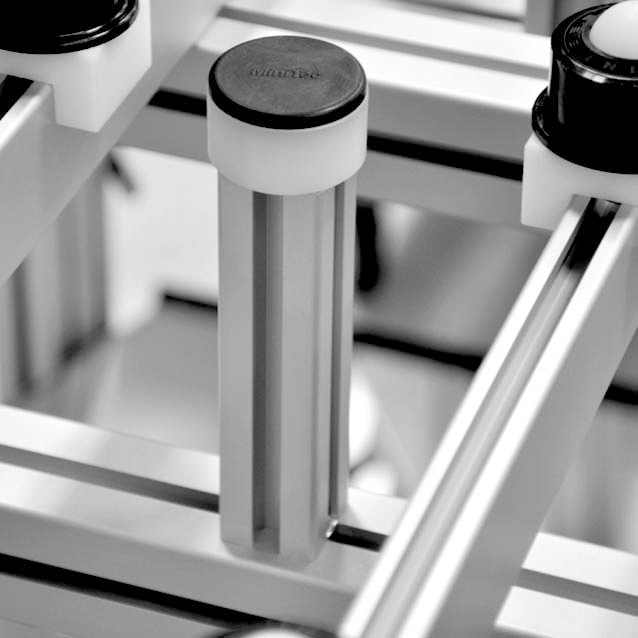

Applications
Assembly
Aluminium, extruded, anodized E6/EV1
I
x
= 2.133 cm
4
I
y
= 2.133 cm
4
w
x
= 1.422 cm
3
w
y
= 1.422 cm
3
IT = 1.036 cm
4
Weight = 0.652 kg/m
Bar length = 6 m
Packing unit = 54 m
Fits With
VERBIND
Power-lock fastener 30 SF
21.0016/0
VERBIND
Mounting angle 30 GD-Z
21.0905/0
ZUBEHOER
End cap 30x30 Z grey
22.1146/1
ZUBEHOER
End cap 30x30 alu
22.1149/2
