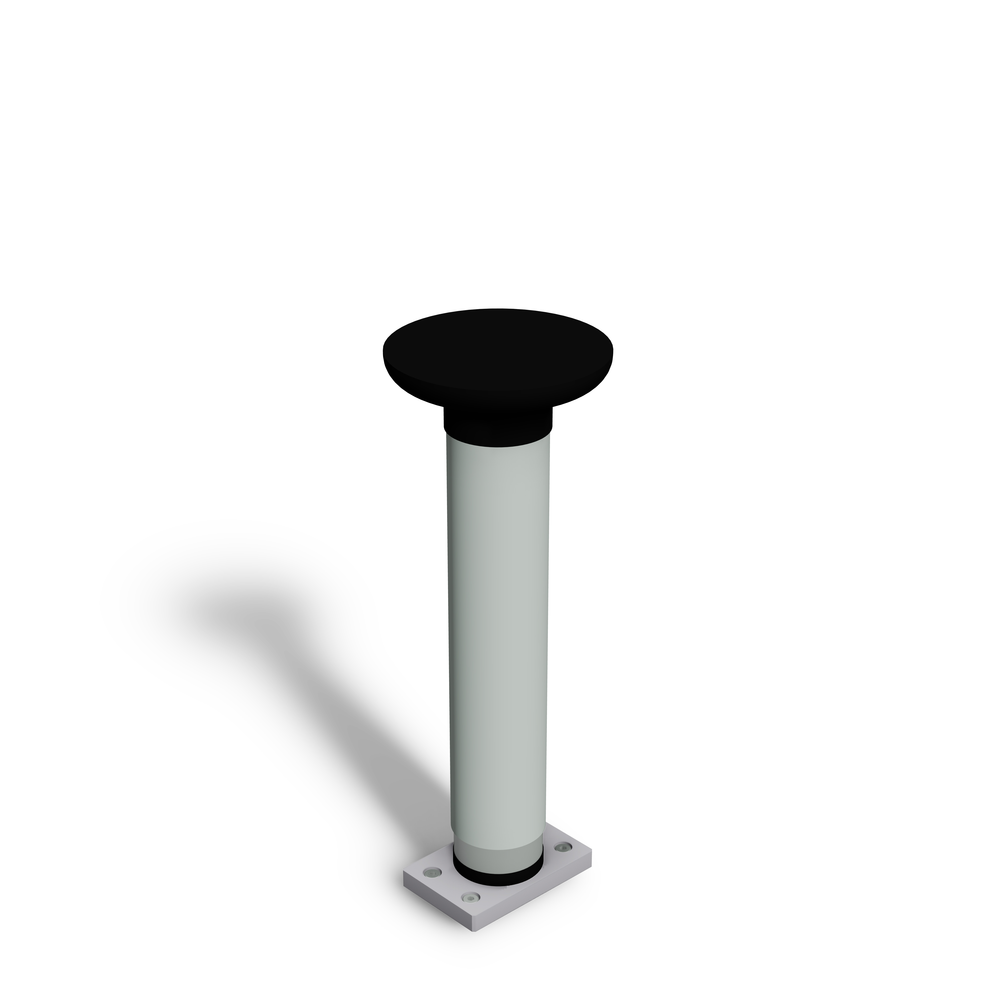

Pneumatic lift system PLS-225

Article Nr. 32.0361/0

Shop availability

Quantity

Comment

Prices and ordering options only for registered and logged in corporate customers.

Techn. Data / Items supplied

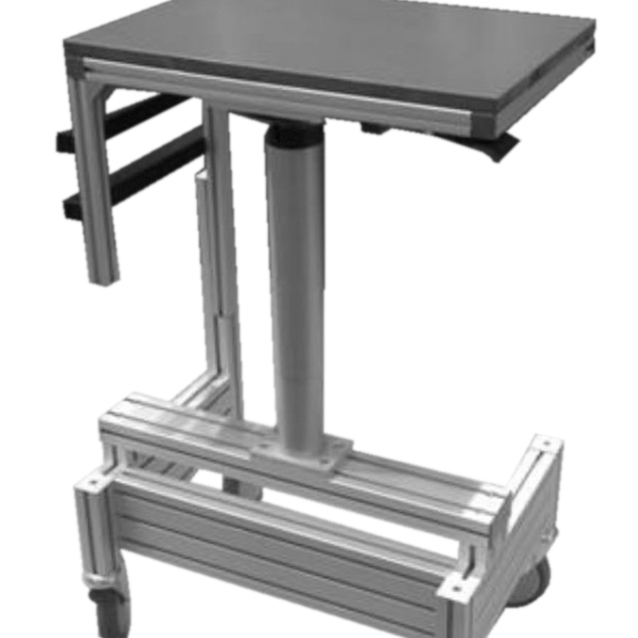

Applications

Assembly

With adapter plate at the bottom and fastening material
Diameter 75 mm
Lifting capacity: 120 N
Max. all. load in blocked condition 1000 N
Stroke (H): 225 mm
Installation dimension (L) retracted: 450mm
Optionally also article no. 32.0360/0
Stroke (H): 415 mm
Installation dimension (L): 640 mm
Weight = 3.788 kg/piece
