Linear axis LR 6
Back

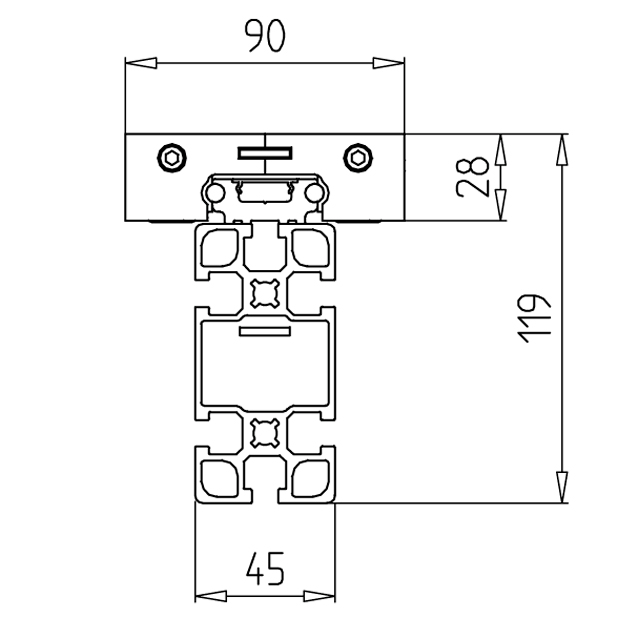

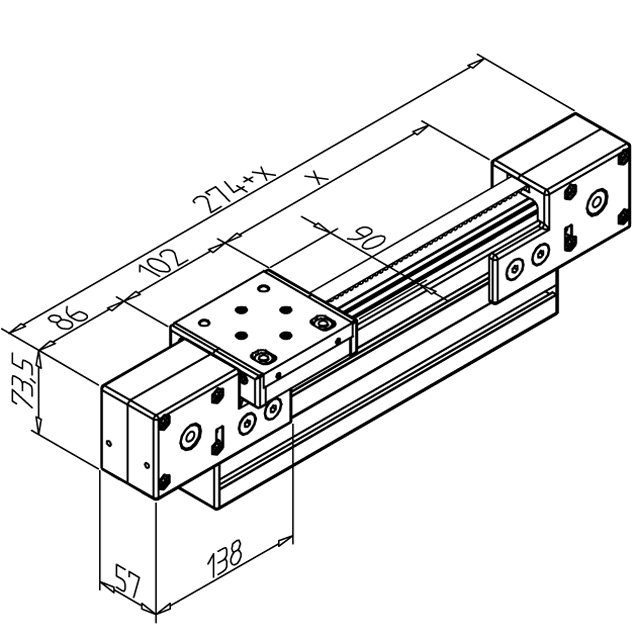

Linear axis LR 6 - 45 x 90
Article Nr. 28.0501/0
Stroke (1 - 5867)
mm
Pulley page 1
D8mm without groove
D10mm with 3mm groove
D11mm with 4mm groove
D12mm with 4mm groove
D14mm with 5mm groove
Pulley page 2
D8mm without groove
D10mm with 3mm groove
D11mm with 4mm groove
D12mm with 4mm groove
D14mm with 5mm groove
Quantity
Comment
or
configure here freely
Add to inquiries
Questions about the product / Contact
CAD Download
Generate datasheet
Techn. Data / Items supplied
Applications
Assembly

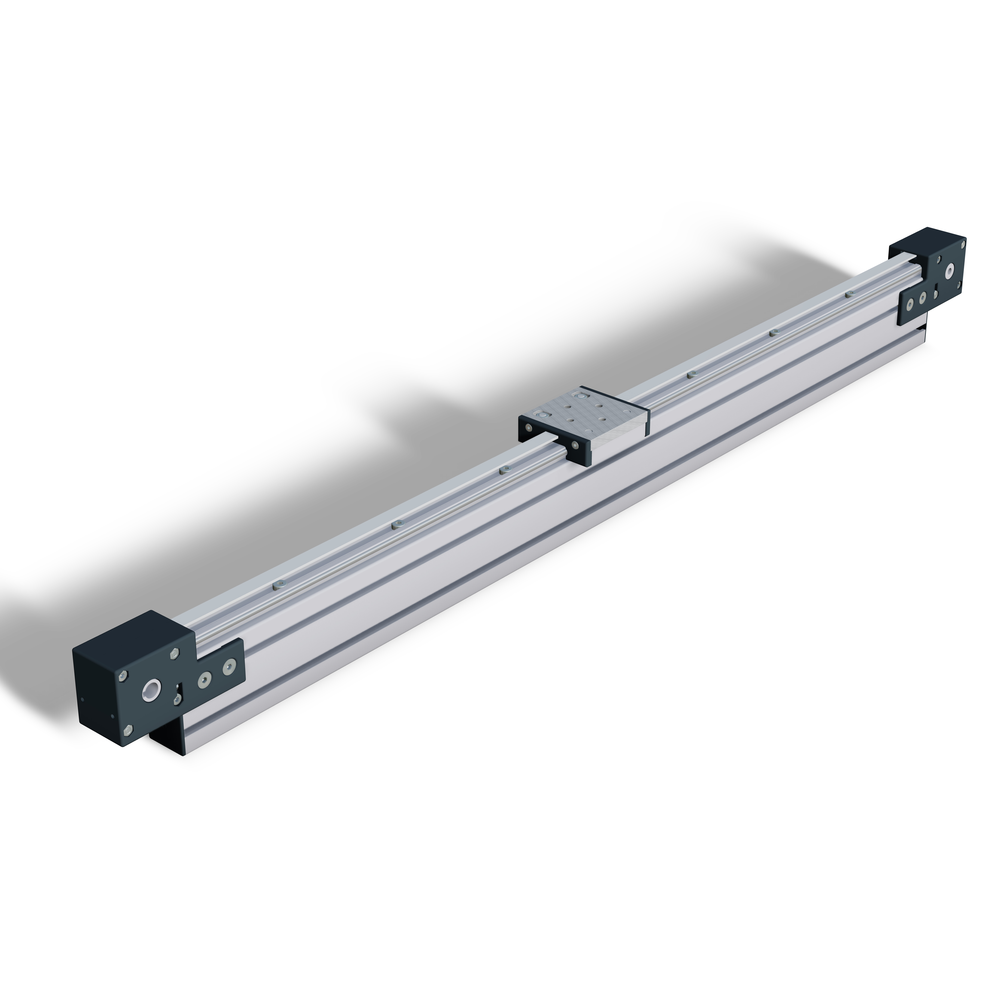

Linear guide, ready for use, consisting of:
1x rail LR 6 S with precision steel shafts h6, Ø 6 mm, on carrier profile 45 x 90 F
1x carriage LR 6 Z with integrated timing belt mounting
2x timing belt deflectors
1x timing belt 16 AT 5, steel reinforced
Please specify stroke length X and reverse unit
Max. stroke length 5867 mm
Stainless version
part no.
28.0501/1
Weight = (basic weight) 2.25 kg
Extra weight = 0.453 kg / 100 mm stroke
