Lifting column made of aluminium, anodized, conductive, silicone-free, with plastic glides

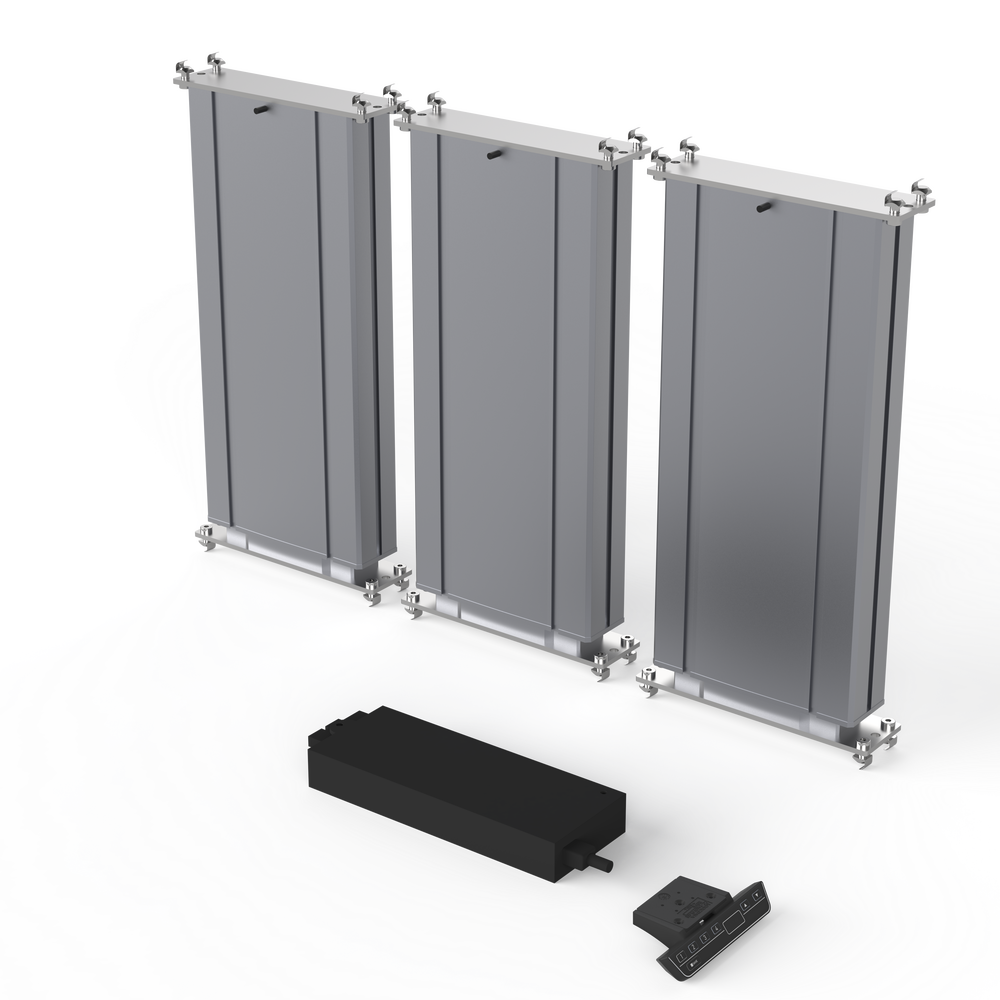

Scope of delivery: - 3x lifting column with 1.8 m connection cable to the control unit - 1x synchronized control with 2.5 m mains cable - 1x handset with 1.8 m connection cable to the control unit - Mounting accessories
Installation height(H)/stroke(h): 490mm/300mm
Lifting speed 10 mm/s
Synchronous control 230V/50Hz/5A for controlling up to 3 lifting columns (up to 12 on request)
Duty cycle 10 % (S3) with periodic operation and max. load (2 min. ON / 18 min. OFF)
Manual switch for up/down function and 4 storable positions with 3-digit display
Cable supply per column: L=1700mm, cable exit on the large profile on the inside
Max. System load 10500 N
Load capacity per lifting column: - maximum lifting force 3500 N - maximum side load (Mby) stat.1000 Nm, dyn. 500 Nm - maximum lateral load (Mbx) stat.300 Nm, dyn. 200 Nm
